In this lesson, we will learn how to construct the perpendicular bisector of a line segment using a compass and a straightedge or ruler. We will also learn how a perpendicular bisector can be used to form a rhombus or kite and to find the midpoint of a line segment.

The following diagram shows the perpendicular bisector of the line segment AB. Scroll down the page for examples and step-by-step solutions.

The**perpendicular bisector** of a line segment *AB* is a line that divides the line *AB* into two equal parts at a right angle.
**How to construct a perpendicular bisector?**

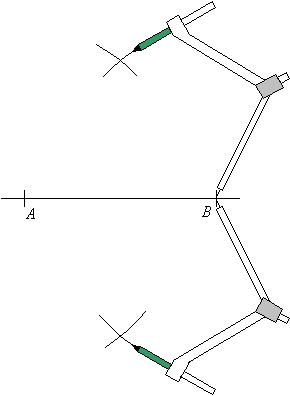

** Step 2** : Without changing the width of the compasses, put the sharp end at *B* and mark arcs above and below the line segment *AB* that will intersect with the arcs drawn in step 1.

**How to construct an isosceles triangle or a rhombus?**

The above construction steps can also be used to construct an isosceles triangle or a rhombus.

**How to construct a perpendicular bisector of a line segment?**

1. Draw a line segment.

2. Set compasses to longer than half the length of line segment.

3. Construct two arcs, one centered at each end, so that two intersections are created.

4. Draw a line connecting the arc intersections.**How to bisect a line segment using only a compass and straightedge?**

### Uses of a Perpendicular Bisector

**Constructing a Perpendicular Bisector with Isosceles Triangles**

Forming either a Rhombus or a Kite and then joining opposite vertices with perpendicular diagonals bisecting each other.**How to Find the Midpoint of a Line Segment Using a Perpendicular Bisector**

In this tutorial about geometric constructions, we walk through how to locate the mid-point of a line segment without a ruler, using a math compass and a straightedge. We can find the mid-point by draw a perpendicular bisector.

1. Set your compass so that it is slightly larger than half the length of the segment.

2. Place the compass at point A and draw a set of arcs above and below the line.

3. Without changing the compass setting, place the compass at point B and draw a set of arcs intersecting the first set of arcs.

4. Draw a point at each intersection of arcs.

5. Connect the two points with a line.

6. The point where the lines cross is the midpoint.**Constructing the Perpendicular Bisectors of the Sides of a Triangle**

This video explains how to construct the perpendicular bisectors of the sides of a triangle and define the properties of the perpendicular bisectors of the sides of a triangle.

The circumcenter is the point of concurrency for the perpendicular bisectors of the sides of a triangle.

The circumcenter is the center of a circle that passes through the vertices of the triangle. The circumcenter is equidistant to the vertices.

We say the circle circumscribes the triangle.

You can use the free Mathway calculator and problem solver below to practice Algebra or other math topics. Try the given examples, or type in your own problem and check your answer with the step-by-step explanations.

In this lesson, we will learn how to construct the perpendicular bisector of a line segment using a compass and a straightedge or ruler. We will also learn how a perpendicular bisector can be used to form a rhombus or kite and to find the midpoint of a line segment.

The following diagram shows the perpendicular bisector of the line segment AB. Scroll down the page for examples and step-by-step solutions.

The

**Example*** : *

Construct a perpendicular bisector of the given line segment *AB*.

* Solution: *

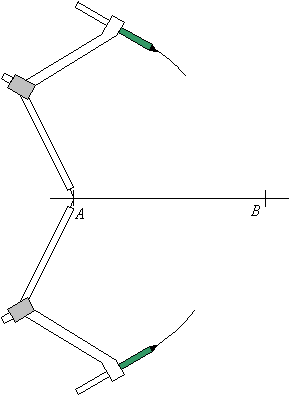

** Step 1** : Stretch your compasses until it is more then half the length of *AB*. Put the sharp end at *A* and mark an arc above and another arc below line segment *AB*.

** Step 3** : Join the two points where the arcs intersect with a straight line. This line is the perpendicular bisector of *AB*. *P *is the midpoint of* AB*.

The above construction steps can also be used to construct an isosceles triangle or a rhombus.

For example,

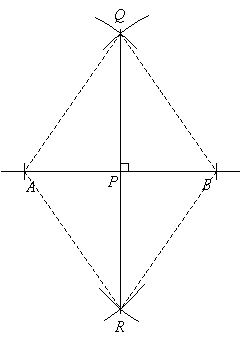

We have constructed 4 isosceles triangles; *AQB, ARB, QAR *and *ARB*. We have also constructed a rhombus *AQBR.*

1. Draw a line segment.

2. Set compasses to longer than half the length of line segment.

3. Construct two arcs, one centered at each end, so that two intersections are created.

4. Draw a line connecting the arc intersections.

Forming either a Rhombus or a Kite and then joining opposite vertices with perpendicular diagonals bisecting each other.

In this tutorial about geometric constructions, we walk through how to locate the mid-point of a line segment without a ruler, using a math compass and a straightedge. We can find the mid-point by draw a perpendicular bisector.

1. Set your compass so that it is slightly larger than half the length of the segment.

2. Place the compass at point A and draw a set of arcs above and below the line.

3. Without changing the compass setting, place the compass at point B and draw a set of arcs intersecting the first set of arcs.

4. Draw a point at each intersection of arcs.

5. Connect the two points with a line.

6. The point where the lines cross is the midpoint.

This video explains how to construct the perpendicular bisectors of the sides of a triangle and define the properties of the perpendicular bisectors of the sides of a triangle.

The circumcenter is the point of concurrency for the perpendicular bisectors of the sides of a triangle.

The circumcenter is the center of a circle that passes through the vertices of the triangle. The circumcenter is equidistant to the vertices.

We say the circle circumscribes the triangle.
