# Illustrative Mathematics Unit 6.5, Lesson 2: Using Diagrams to Represent Addition and Subtraction

Learning Targets:

• I can use diagrams to represent and reason about addition and subtraction of decimals.
• I can use place value to explain addition and subtraction of decimals.
• I can use vertical calculations to represent and reason about addition and subtraction of decimals.

Related Pages
Illustrative Math

#### Lesson 2: Using Diagrams to Represent Addition and Subtraction

Let’s represent addition and subtraction of decimals.

Illustrative Math Unit 6.5, Lesson 2 (printable worksheets)

#### Lesson 2 Summary

The following diagram shows how to use diagrams to represent and reason about addition of decimals. #### Lesson 2.1 Snacks from the Concession Stand

1. Here is a rectangle.
• Show Rectangle What number does the rectangle represent if each small square represents:
a. 1
b. 0.1
c. 0.01
d. 0.001
2. Here is a square.
• Show Square What number does the square represent if each small rectangle represents:
a. 10
b. 0.1
c. 0.00001

Scroll down the page for the solutions to the “Are you ready for more?” section.

#### Lesson 2.2 Squares and Rectangles

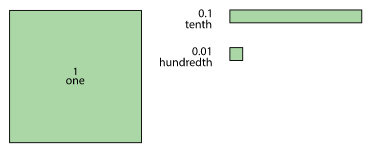

You may be familiar with base-ten blocks that represent ones, tens, and hundreds. Here are some diagrams that we will use to represent digital base-ten units. A large square represents 1 one. A rectangle represents 1 tenth. A small square represents 1 hundredth.

• Show Base-Ten Blocks The applet has tools that create each of the base-ten blocks.
Select a Block tool, and then click on the screen to place it.
Show Applet

1. Here is the diagram that Priya drew to represent 0.13. Draw a different diagram that represents 0.13. Explain why your diagram and Priya’s diagram represent the same number.
• Show Diagram 2. Here is the diagram that Han drew to represent 0.25. Draw a different diagram that represents 0.25. Explain why your diagram and Han’s diagram represent the same number.
• Show Diagram 3. For each of these numbers, draw or describe two different diagrams that represent it.
a. 0.1

b. 0.02

c. 0.43
4. Use diagrams of base-ten units to represent the following sums and find their values. Think about how you could use as few units as possible to represent each number.
a. 0.03 + 0.05
b. 0.06 + 0.07
c. 0.4 + 0.7

#### Lesson 2.3 Finding Sums in Different Ways

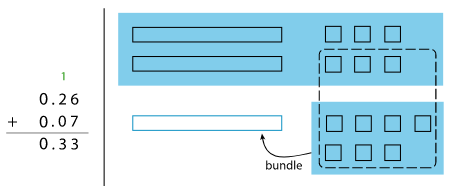

1. Here are two ways to calculate the value of 0.26 + 0.07. In the diagram, each rectangle represents 0.1 and each square represents 0.01.
• Show Diagram Use what you know about base-ten units and addition of base-ten numbers to explain:
a. Why ten squares can be “bundled” into a rectangle.
b. How this “bundling” is reflected in the computation.
The applet has tools that create each of the base-ten blocks. Select a Block tool, and then click on the screen to place it.
Show Applet

2. Find the value of 0.38 + 0.69 by drawing a diagram. Can you find the sum without bundling? Would it be useful to bundle some pieces? Explain your reasoning.
3. Calculate 0.38 + 0.69. Check your calculation against your diagram in the previous question.

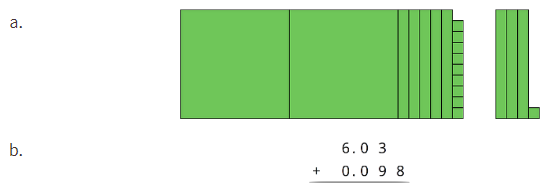

4. Find each sum. The larger square represents 1, the rectangle represents 0.1, and the smaller square represents 0.01.
• Show Diagram #### Are you ready for more?

A distant, magical land uses jewels for their bartering system. The jewels are valued and ranked in order of their rarity. Each jewel is worth 3 times the jewel immediately below it in the ranking. The ranking is red, orange, yellow, green, blue, indigo, and violet. So a red jewel is worth 3 orange jewels, a green jewel is worth 3 blue jewels, and so on.

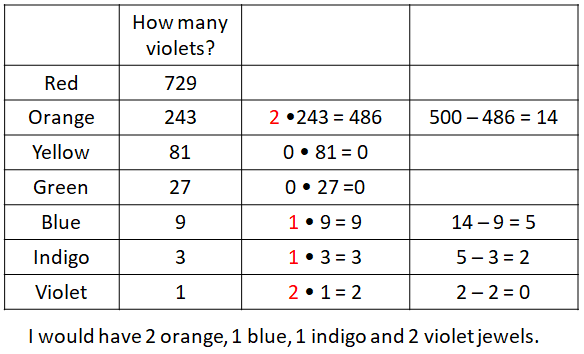

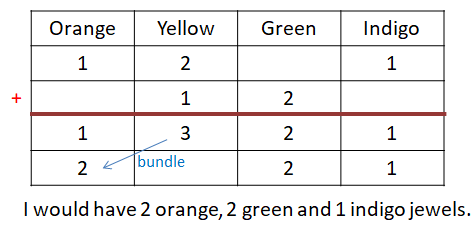

1. If you had 500 violet jewels and wanted to trade so that you carried as few jewels as possible, which jewels would you have? 2. Suppose you have 1 orange jewel, 2 yellow jewels, and 1 indigo jewel. If you’re given 2 green jewels and 1 yellow jewels, what is the fewest number of jewels that could represent the value of the jewels you have? #### Lesson 2.4 Representing Subtraction

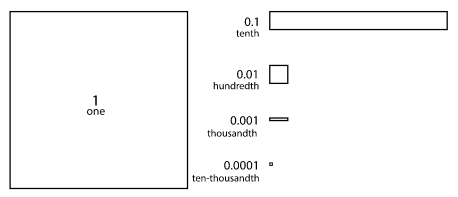

Here are the diagrams you used to represent ones, tenths, hundredths, thousandths, and ten-thousandths.

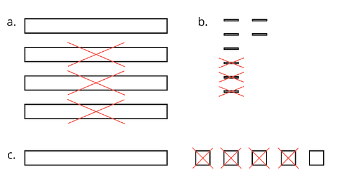

• Show Diagram 1. Here are diagrams that represent differences. Removed pieces are marked with Xs. For each diagram, write a numerical subtraction expression and determine the value of the expression.
• Show Diagram 2. Express each subtraction in words.
a. 0.05 - 0.02
b. 0.024 - 0.003
c. 1.26 - 0.14
3. Find each difference by drawing a diagram and by calculating with numbers. Make sure the answers from both methods match. If not, check your diagram and your numerical calculation.
a. 0.05 - 0.02
b. 0.024 - 0.003
c. 1.26 - 0.14

#### Lesson 2 Practice Problems

1. Use the given key to answer the questions.
• Show Diagram a. What number does this diagram represent?
• Show Diagram b. Draw a diagram that represents 0.216.
c. Draw a diagram that represents 0.304.

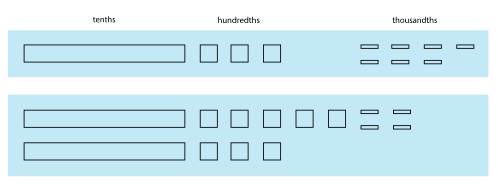

2. Here are diagrams that represent 0.137 and 0.284.
• Show Diagram a. Use the diagram to find the value of 0.137 + 0.284. Explain your reasoning.
b. Calculate the sum vertically.
c. How was your reasoning in the first two questions different? How was it similar or the same?

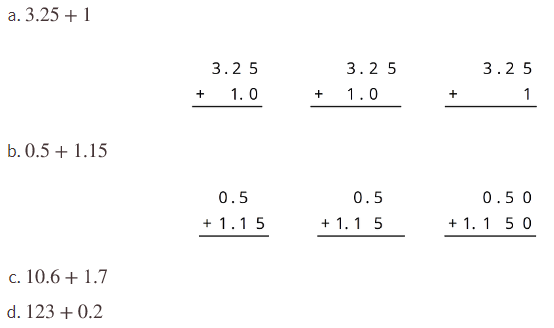

3. For the first two problems, circle the vertical calculation where digits of the same kind are lined up. Then, finish the calculation and find the sum. For the last two problems, find the sum using vertical calculation.
• Show Problems 4.Andre has been practicing his math facts. He can now complete 135 multiplication facts in 90 seconds.
a. If Andre is answering questions at a constant rate, how many facts can he answer per second?
b. Noah also works at a constant rate, and he can complete 75 facts in 1 minute. Who is working faster? Explain or show your reasoning.
